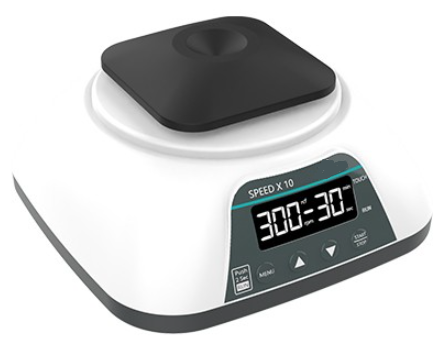

Multi-Plate Vortex Mixer, 0-3,000 RPM Digital Control
In stock
SKU
CGVM-500PRO
$295.00
• Adaptable mixing for tubes, plates, and flasks
• 8 swappable modules for various mixing options
• Available with digital display or speed control knob
• Digital option features run timer from 60sec to 8h
• Brushless motor for constant vortexing power
• Shaking Orbit: 4.5mm
Multi Plate Vortex Mixer Technical Data
| Model | CGVM - 500S | CGVM - 500Pro |
|---|---|---|
| Operating Mode | Touch / Run | Touch / Run |
| Control Mode | Knob speed adjustment | PWM speed adjustment |
| Display | NO | LCD |
| Motor | Brushless motor | Brushless motor |
| Amplitude | 4.5MM circular oscillation | 4.5MM circular oscillation |
| Capacity | 50ml*4 / 15ml*9 / 5-10ml*12 / 2ml*24 | 50ml*4 / 15ml*9 / 5-10ml*12 / 2ml*24 |
| Speed Range | Touch: 0-3000 rpm, Run: 200-3000 rpm | Touch: 0-3000 rpm, Run: 100-3000 rpm |
| Timing / Time | 1min - 8h | 1min - 8h |
| Shell Protection Level | IP21 | IP21 |
| Voltage | AC 100-240V / DC24V | AC 100-240V / DC24V |
| Power | 20W | 20W |
| Temperature | 5 - 40℃, 80%RH | 5 - 40℃, 80%RH |
| Product Name | Multi-Plate Vortex Mixer, 0-3,000 RPM Digital Control |
|---|---|
| SKU | CGVM-500PRO |
